With ongoing efforts in rural sewage treatment, residential construction, and municipal renovation projects across Yunnan, fiberglass septic tanks have become a core component for preliminary wastewater treatment. Standardized construction processes are essential to ensure long-term equipment stability, leak-proof compliance, and successful project acceptance.

Combining Yunnan's complex geological conditions, standardized FRP septic tank installation includes the following complete process: excavation of foundation pit, compaction of undisturbed subgrade soil, laying of sand cushion, hoisting and positioning of the tank, levelness adjustment, airtight pipe connection, 24-hour water tightness test, simultaneous backfilling with water into the tank, layered compaction, and final product protection.

In the Yunnan region, characterized by extensive soft soil and high groundwater levels during the rainy season, never place tanks directly on bare earth. Backfilling must use fine soil or sand; remove all rocks and hard construction debris. Compact in layers while maintaining water inside the tank for ballast to balance internal and external pressure, preventing uplift, tilting, or deformation.

Strictly follow CJ/T409 national standards to significantly reduce risks of leakage, settlement, and rework, ensuring stable quality in sewage treatment projects.

Yunnan Jingheng Environmental Protection is a local source manufacturer of FRP septic tanks in Yunnan, specializing in adapting to local industrial conditions and standardized construction techniques. We provide selection calculations, construction plan guidance, complete acceptance documentation, and on-site technical support for various sewage treatment projects.

Cover depth is a core metric for selecting fiberglass septic tanks, designing their structure, and controlling construction. It directly determines the tank's load-bearing capacity and service life. Per national standard drawing 14SS706, the standard cover depth for conventional fiberglass septic tanks ranges from 0.5 to 3 meters, suitable for residential landscaping, municipal projects in towns, and areas with normal pedestrian traffic.

Mountainous projects in Yunnan commonly feature deep burial, steep slope backfilling, and thick soil layers. When burial depth exceeds 3 meters, standard tanks cannot withstand the soil pressure, leading to structural deformation, cracking, or leakage. Deep-burial applications require reinforced fiberglass septic tanks or reinforced concrete protective covers to distribute soil loads and ensure tank structural integrity.

Load-bearing capacities vary by scenario. Green areas, pedestrian zones, fire lanes, and vehicle roads require specific tank models matched to their respective loads. These are not interchangeable; using the wrong model risks structural damage and costly rework.

Yunnan Jingheng Environmental Protection can precisely match tank models based on project soil cover depth, geological conditions, and surface load parameters, providing compliant solutions for wastewater treatment projects across Yunnan.

In the procurement of storage tanks for the chemical, food, and environmental industries, equipment process compliance, structural stability, and anti-corrosion coating quality are the core factors determining service life and operational safety. While market tanks often appear similar externally, their internal manufacturing processes, layering structures, and curing standards vary significantly, directly impacting long-term performance. This article details the complete production workflow of standardized FRP tanks to help industry professionals quickly distinguish high-quality tanks from standard ones.

First, mold pre-treatment ensures precise tank dimensions and a uniform appearance. Based on the customer's specified volume, diameter, and height, Yunnan Jingheng Environmental Protection adjusts the dedicated winding molds, performs detailed cleaning and polishing of the mold surfaces, and applies a specialized release agent evenly. This prevents issues such as sticking, burrs, and surface irregularities after molding, strictly controls dimensional tolerances, and ensures accurate equipment installation alignment.

Next is the fabrication of the inner anti-corrosion liner, the core structure for tank leak prevention and corrosion resistance that directly contacts various corrosive media. For different stored materials such as hydrochloric acid, chemical waste liquid, and food stock solutions, we select compatible corrosion-resistant resins and fiberglass mats. Using a precise hand-layup process, layers are applied sequentially. The resulting liner is dense and uniform, free of bubbles or delamination, effectively blocking media penetration to prevent common issues like tank corrosion, peeling, and leakage at the source.

Third, the structural reinforcement layer uses fully automated winding to determine the tank's pressure resistance and deformation resistance. The equipment employs a computer-controlled 3D cross-winding process that precisely regulates winding angle, thickness, and density. This ensures uniform stress distribution across the tank, significantly enhancing impact resistance and deformation performance. Designed for industrial atmospheric storage conditions, it delivers superior structural stability.

Fourth, head and tank assembly reinforcement: the tank heads are pre-fabricated as a single unit for consistent curvature and balanced load distribution. After assembly, multi-layer reinforcement is applied to seam gaps and vulnerable corners to eliminate joint risks. Additionally, inlet/outlet ports, inspection openings, and drain ports are standardized based on operational needs to accommodate various site piping connections.

Fifth, constant-temperature curing and precision finishing: After the tank body is formed, it undergoes a constant-temperature curing process to ensure complete resin polymerization, enhancing overall hardness and anti-aging performance. Once cured, manual fine sanding is performed on the tank surface to remove burrs and smooth joints, ensuring a flat and uniform appearance.

Final multi-dimensional factory quality inspection includes appearance checks, dimension verification, airtightness testing, leak-proof testing, and interlayer strength testing. Products are only released after meeting all standards.

Standardized FRP tanks manufactured with consistent processes suit diverse industrial applications, including chemical processing, food production, and wastewater treatment. These tanks offer excellent corrosion resistance, superior sealing performance, and long-term reliability. Yunnan Jingheng Environmental Protection specializes in the R&D and production of FRP tanks, chemical storage tanks, hydrochloric acid tanks, and a wide range of other FRP products. This article provides an industry overview to assist with product selection.

Residential Compound Fiberglass Septic Tank: Engineering Design and Construction Plan

Residential communities feature high population density, substantial sewage discharge, and frequent equipment usage, necessitating strict standards for septic tank leak resistance, structural strength, and long-term stability.

Select the septic tank for residential projects based on occupancy, daily wastewater volume, cover depth, and fire lane layout. Prioritize standard integrated fiberglass septic tanks: fully sealed with zero leakage, requiring no complex maintenance, and designed for long-term, high-frequency use.

Key construction controls: excavation elevation, tank levelness, pipeline slope, water tightness test quality, lane load reinforcement, and backfill compaction density. Residential projects have strict supervision acceptance standards; all entry documentation, inspection reports, and concealed work records must be complete and accurate.

Yunnan Jingheng Environmental Protection has consistently supported sewage treatment projects for new residential communities and urban renewal initiatives in Yunnan, delivering stable product quality, high delivery efficiency, and excellent project acceptance rates.

Selection Criteria and Engineering Requirements for FRP Septic Tanks in Rural Toilet Retrofit Projects, Yunnan Province

The Yunnan Rural Living Environment Sewage Renovation Project covers a vast area with scattered construction sites and complex geological conditions, requiring high performance in septic tank anti-seepage, buoyancy resistance, and structural stability.

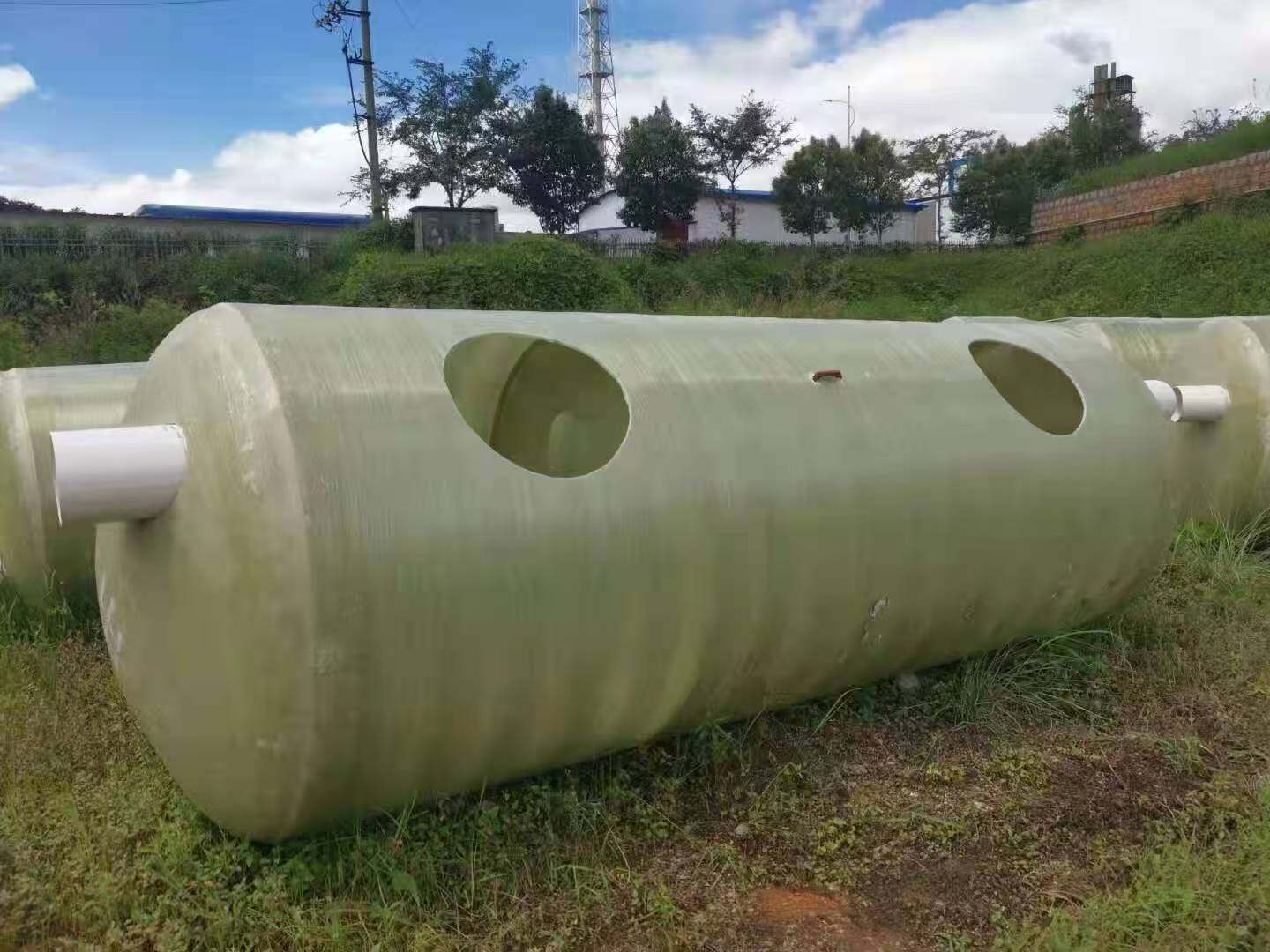

Rural single-house toilet renovation projects commonly use small three-compartment fiberglass septic tanks with capacities of 1.5 cubic meters, 2 cubic meters, and 3 cubic meters. For concentrated multi-house renovations in natural villages, integrated tank units ranging from 10 to 30 cubic meters are selected. All equipment must meet the required effective volume standards and fully comply with Yunnan Province's rural sewage treatment acceptance specifications.

Rural construction sites typically feature shallow excavations, soft soil, poor drainage, and high groundwater levels. Construction must prioritize four critical processes: subgrade compaction, water tightness testing, layered backfilling, and anti-floating measures.

Official ClosingYunnan Jingheng Environmental Protection has long served Yunnan's rural revitalization toilet renovation projects. With comprehensive product specifications, complete acceptance documentation, and rich implementation cases, we ensure the successful completion and acceptance of rural sewage treatment projects.

Reinforced FRP Septic Tanks: Application Scenarios and Load Classifications

Based on ground bearing capacity and operating conditions, FRP septic tanks are classified into four grades: standard landscaping type, pedestrian load type, heavy-duty vehicular load type, and deep-burial reinforced type. Each construction scenario must use a tank rated for the corresponding load capacity.

Standard tanks are suitable for general landscaping areas and zones without vehicle loads. For residential fire lanes, main vehicular roads, and areas beneath parking lots, reinforced thickened tanks must be used to enhance ring stiffness and overall compressive strength.

In Yunnan's mountainous regions, for underground burial depths exceeding 3 meters, steep slope backfill projects, and areas with heavy vehicle traffic, high-strength deep-burial reinforced tanks are mandatory to prevent tank deformation, damage, and inspection failures.

Yunnan Jingheng Environmental Protection offers free tank grade calculations based on project parameters such as soil cover, geological conditions, and traffic load requirements. We provide compliant and tailored selection solutions for your engineering projects.

Yunnan Fiberglass Septic Tank Backfill Construction Specifications and Anti-Flotation Measures

Yunnan's rainy season brings abundant precipitation. In low-lying areas, riverbanks, paddy fields, and dam sites within the region, groundwater levels remain consistently high year-round. Non-compliant septic tank backfilling practices frequently lead to tank flotation, tilting, displacement, pipe joint fractures, and leaks.

Standardized Backfilling Requirements: Use clean fine sand and plain soil as backfill materials. Stones, hard objects, and construction debris must not come into direct contact with the tank surface. Backfilling shall be performed in layers, with each layer not exceeding 30 cm in thickness, compacted progressively.

Backfilling must be performed while simultaneously filling the tank with water to maintain internal ballast and balance soil-water pressure; this is the core construction method for preventing tank uplift. For low-lying sites near water or extreme high-water conditions, additional anti-uplift measures—such as pre-excavation dewatering, perimeter drainage, and concrete counterweights—must be implemented.

Yunnan Jingheng Environmental Protection has developed a mature, standardized construction plan for high-water-level sites in Yunnan, providing end-to-end implementation technical support for various sewage treatment projects.

Fiberglass Septic Tank Water Tightness Test Standard for Acceptance After 24 Hours

The water-tightness test is a critical mandatory step in the final acceptance of fiberglass septic tank projects. It verifies the overall sealing integrity of the tank, the quality of pipe joint installations, and compliance with anti-seepage standards.

After equipment installation and pipe connections are complete, seal the inlet and outlet ports. Fill the tank to the standard operating water level and let it stand for 24 hours. Acceptance criteria: no leaks from the tank body, no dripping at flange joints, no seepage at pipe connections, and no significant drop in water level.

Some construction sites skip the water retention test to accelerate schedules, leading to hidden leaks after backfilling and resulting in extremely high rework costs. Whether for rural toilet upgrades, residential complex projects, or municipal sewage rehabilitation, strict adherence to per-pool testing and "first-toilet-pass" acceptance principles is mandatory.

All Yunnan Jingheng FRP septic tanks are manufactured strictly in accordance with national standards, ensuring stable quality and superior leak resistance. We provide complete inspection documentation and standardized acceptance guidance to guarantee successful project acceptance.

Yunnan's complex terrain features prevalent soft soil, backfilled mixed earth, low-lying paddy fields, and high groundwater levels. Irregular foundation treatment is the primary cause of subsequent settlement, tilting, and leakage in septic tanks.

Standardize foundation construction to fully compact undisturbed soil at the excavation base, ensuring uniform and stable bearing capacity across the entire base. For soft or silty soils, replace the fill material and install a graded sand cushion or concrete pad to ensure even load distribution on the tank body, preventing local voids or pressure-induced damage.

During the rainy season, implement pre-emptive dewatering and drainage measures for excavation pits to prevent soil saturation and softening at the base, which could reduce bearing capacity. For subgrade construction, strictly control flatness, elevation, and compaction to ensure the tank is level and structural loads are evenly distributed.

Standard foundation and bedding construction are essential for ensuring the long-term stability of septic tank projects.

Yunnan Jingheng Environmental is well-versed in complex construction conditions across Yunnan. With extensive experience in soft ground and high water table projects, we provide professional foundation solutions and end-to-end technical guidance for your engineering projects.
